4000kWh Battery Container For ESS

The design of ESS system is to reduce the cost and maintain the grid stability. The significant benefits as follows :

(1)enhance power system reliability;

(2)reduce the power cost and minimize the potential for power loss;

(3)peak load shifting.

product description

ELECTRICAL PARAMETERS

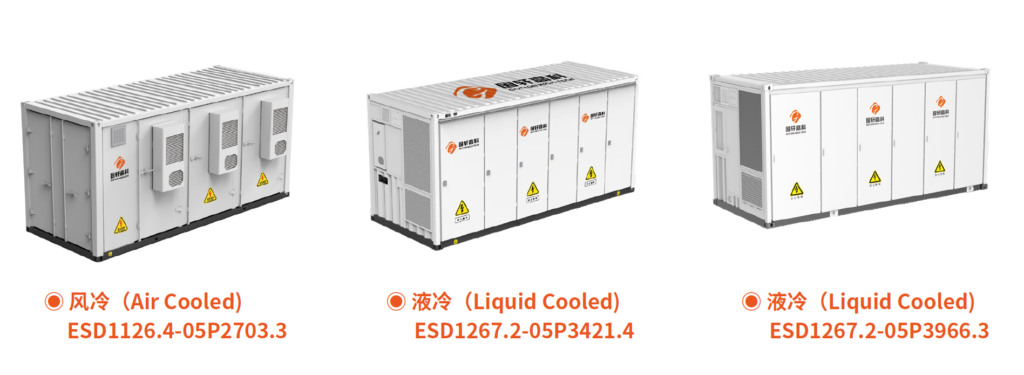

Parameter Name	ESD1126.4-05P2703.3	ESD1267.2-05P3421.4	ESD1267.2-05P3966.3
Cell Capacity	100Ah	300Ah	313Ah
Nominal Capacity	2703.3kWh	3421.4kWh	3966.3kWh
Recommended Voltage Range	985.6~1267.2Vdc	1108.8~1425.6Vdc	1108.8~1425.6Vdc
Rated Voltage	1126.4Vdc	1267.2Vdc	1267.2Vdc
Max Charge Rate	0.5P@25°C	0.5P@25°C	0.5P@25°C
Max Discharge Rate	0.5P@25°C	0.5P@25°C	0.5P@25°C
Max Charge Power	1351.6kW (0.5P)	1710.7kW (0.5P)	1983.1kW (0.5P)

ENVIRONMENTAL PARAMETERS

Parameter Name	ESD1126.4-05P2703.3	ESD1267.2-05P3421.4	ESD1267.2-05P3966.3
Operating Temperature Range	-20~55°C	-20~55°C	-20~55°C
Operating Humidity Range	≤95%	0~95%	0~95%
Enclosure Protection Rating	IP54	IP54	IP54
Cooling	Air-conditioning	Liquid Cooled	Liquid Cooled
Fire Fighting System	HFC-227ea/Novec1230	HFC-227ea/Novec1230	HFC-227ea/Novec1230
Altitude	<3000m	<3000m	<3000m

COMMUNICATIONS

Parameter Name	ESD1126.4-05P2703.3	ESD1267.2-05P3421.4	ESD1267.2-05P3966.3
Communication	CAN, RS485, Ethernet	CAN, RS485, Ethernet	CAN, RS485, Ethernet

Certification

ESD1126.4-05P2703.3: UL1973, UL9540A, IEC62619*, UN38.3, IEC62477*, IEC61000*, IEC60730*, IEC62933*

ESD1267.2-05P3421.4: UL1973, UL9540A*, IEC62619*, UN38.3, IEC62477*, IEC61000*, IEC60730*, IEC62933*

ESD1267.2-05P3966.3: UL1973*, UL9540A*, IEC62619*, UN38.3*, IEC62477*, IEC61000*, IEC60730*, IEC62933*
*Tests are under way

STRUCTURAL PARAMETERS

Parameter Name	ESD1126.4-05P2703.3	ESD1267.2-05P3421.4	ESD1267.2-05P3966.3
Dimensions (W×D×H)	6058mm×2438mm×2896mm	6058mm×2438mm×2896mm	6058mm×2438mm×2896mm
Weight	≈32t	≈37t	≈43t
